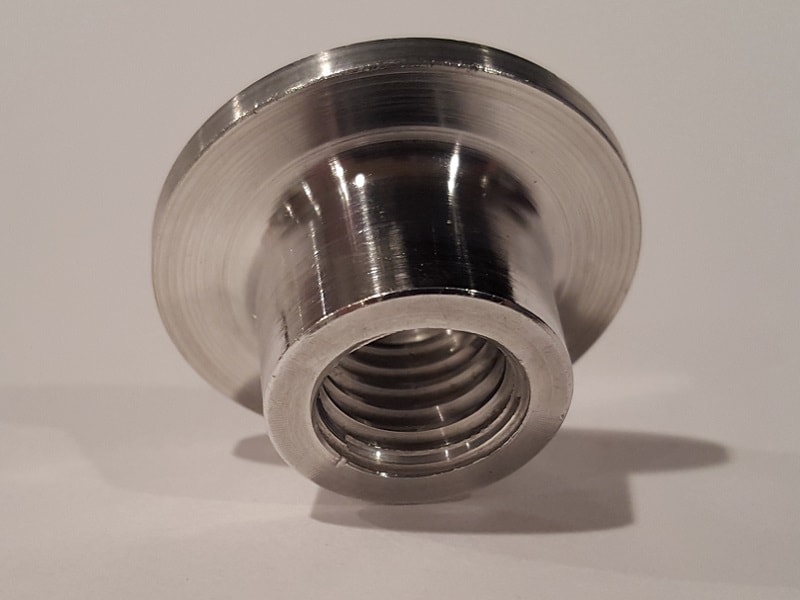

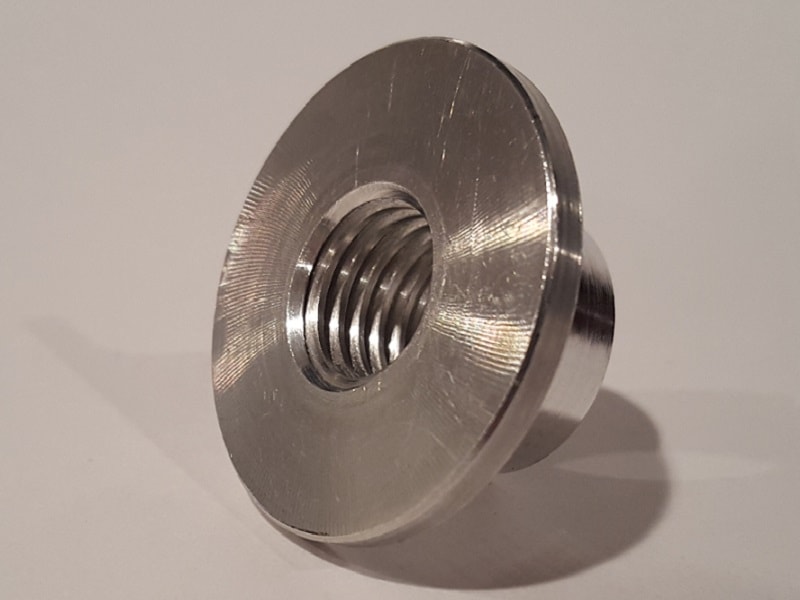

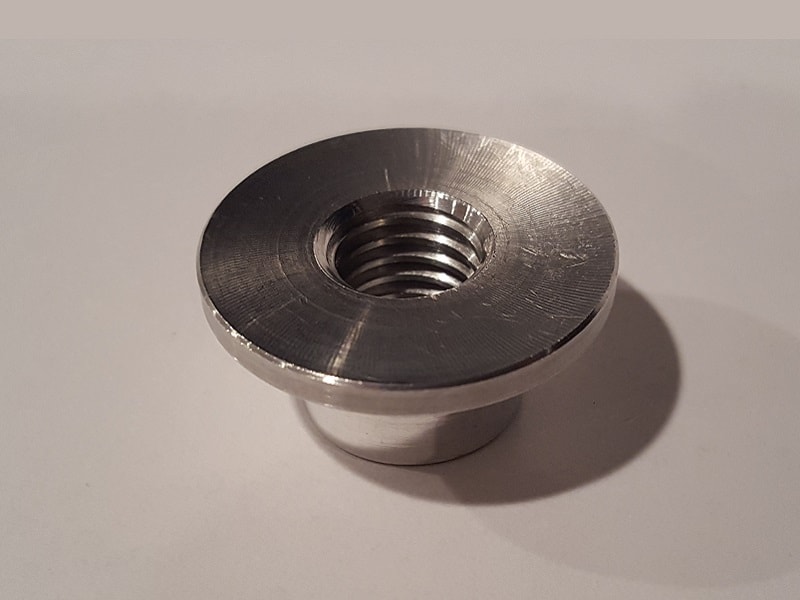

Orifice Flange

Product Specification
Length .010 to 24″
Diameter .010 to 3″
Thread Type UNC, UNF, Acme, Machine
Material Brass, Stainless Steel, Carbon Steel, Alloy Steel, Aluminum
Machine Surface Finish Up to a 16 micro
Tolerances +/-.001″

Request A Quote


"*" symbols for mandatory fields

Product Description

Orifice flanges are mechanical rims used in several industries for a number of different applications. They are generally used in conjunction with orifice meters. These devices help measure the flow rate of both gases as well as liquids in respective pipelines. Two orifice flanges are also sometimes referred to as orifice flange unions. The drop in pressure of the flow through an orifice plate is measured with the help of two pipe taps provided on each flange. However, flanges are not present on the orifice plates. These plates come in different sizes based on the application on which they are used. The flanges are spread apart with the help of two jack screws. This helps change the orifice plate easily. You can choose from different types of orifice flanges such as threaded, weld neck, and slip-on flanges. All these flanges feature a raised face and are installed in a straight run or pipe. This helps prevent any turbulence at the plate. Hong Kong Screws Inc. is one of the leading providers of high-quality orifice flanges.

Specifications of Orifice Flanges

We can provide a wide variety of orifice flanges in the following specifications:

Length .010 to 24”
Diameter .010 to 3”
Thread Type UNC, UNF, Acme, Machine
Tolerances +/-.001”
Machine Surface Finish Up to a 16 micro
Material Brass, Stainless Steel, Steel, Carbon Steel, Alloy Steel, Aluminum, Aircraft Aluminum, Plastic

Industries We Serve

The following are some industries which use orifice flanges:

  1. Vessel and Heat Exchanger Manufacturers
  2. Domestic Flange Manufacturers
  3. Petroleum and Petrochemical Processing Units
  4. Industrial Pump and Compressor Manufacturers
  5. Valve Manufacturing Facilities
  6. Instrumentation and Fabrication Shops
  7. Power Generation Units

At Norwood, our team with years of experience in the field understand the requirements of our customers. We can provide quality products and insure that you receive exactly what you are looking for. If you want to know more about orifice flanges or any other types of flanges give us a call and our experts will help you choose the right type of flange based on your application requirements. Please reach us on our toll-free number +86-755-29539858. You can also email your inquiries or specific requirements to inquiry.screws@made-parts.com.
